Main Features:
• Japanese imported Ricoh GEN5 G6 head for industrial production
• Hard anodized vacuum platform to avoid rigid material damaging
• With2-8 heads as optional
• Vacuum Bed to hold the flexible media like Leather, foam board etc.
• Advanced printhead anti-crash system to avoid the risk of a collision between printer carriage and material
· Y axis adopts imported wire rod and guide rail.
· XY axis adopts high quality servo motor.

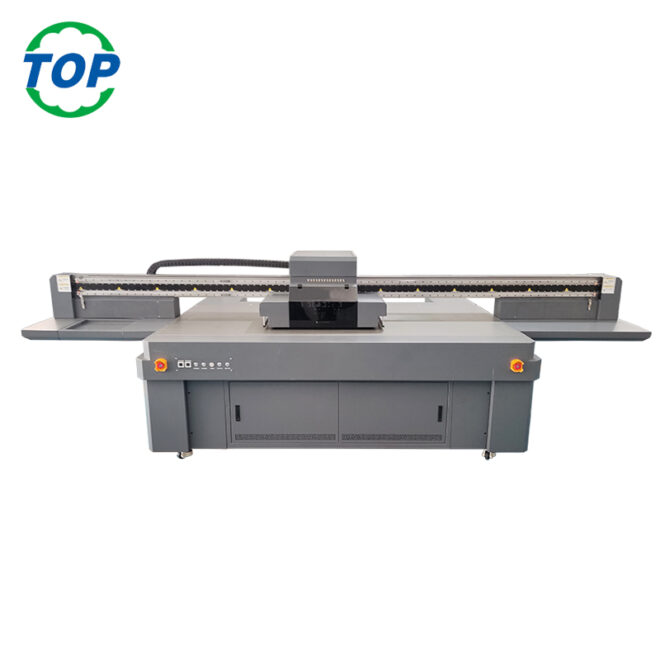

Ricoh UV printer 2513 UV printer uv flatbed printer
Technical Parameters
Model TP-2513G5 G6
Print head Ricoh G5 G6
Qty of head G5 G6 2+1/G5 G63+1(Optional 2-8print head)
Print Height 1-10cm
Power 110V 220V/50-60HZ 7500W
Printing size 250*130cm
Contact interface High Speed USB 3.0 Transmission
Print method Unidirectional/be-directional
Printing environment Temperature20-30 ℃ humidity 40-60%
Operation system Win7/XP/XP64/Vista etc
Colors:CMYKWW(Varnish)+Optional
Printing Speed Standard model 18-25m²/h
Production model 15-18m²/h
High Precison model 8-15m²/h
Resolution:600dpi,720dpi,900dpi 1200dpi
Servo system Three-axis integrated servo full closed-loop control
system,precision control to 0.1mm
Curing system Imported LED UV light curing system
Ink droplet: 7PL
Lift function: Intelligent ink carriage lift
Printing weight:Non destructive weight 400kg/Table
Cleaning system Auto Negative Pressure Printing
Software: Photoprint
