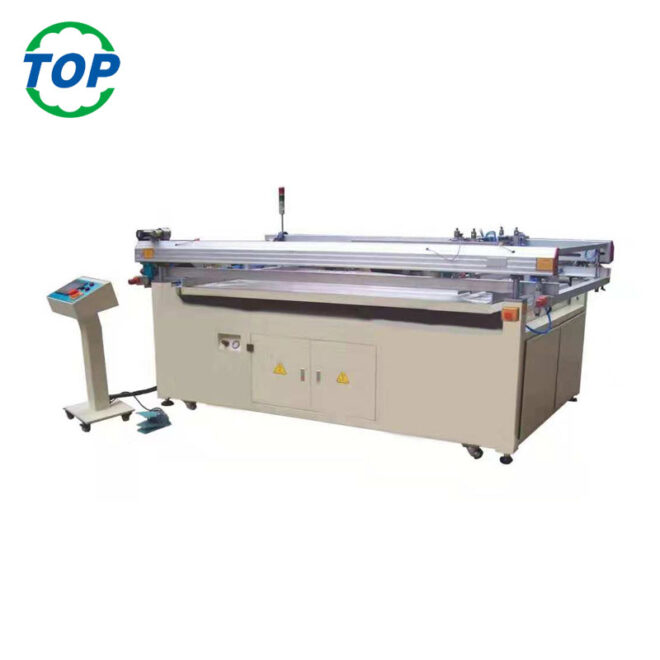

1.4fillar guide screen printer
2.Table size:700x1200mm
3.The worktable: strong vacuum suction table with magnetic attachment
4.PLC + touch screen make
5.Safety device to avoid pinching hand during manual feeding and unloading material.
6.Printing speed: 1000-1500 times / hour and must be adjustable
7.Printing accuracy : 0.01 mm
8.Screen frame lifting height : 300 MM adjustable
9.Printing head movement(left-right) & (up-down) : both Servo motor
10.Power :220v single 50-60hz
11.Squeezee Stroke Adjustment max &min :60x110cm 30x50cm
12.Electric load:2kw
