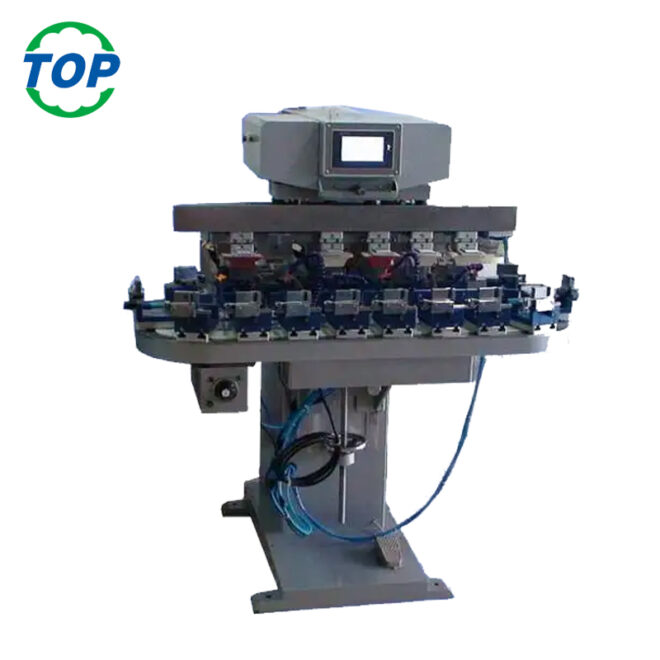

Ball/Bottle 6Color Conveyor Pad Printer
| Model | TOP-200A/6C |
| Plate | 250x100mm |
| Speed |
800-1000pcs/hr |
| Closed ink cup | 90mm |
| Weight | 300kg |
| Machine size | 1750x1250x1450 |
| Power | 110v/220V 60/50HZ 40W |
| Air compressor | 5-7bar |
1. Four/six color pad printing machine, using servo motor shuttle worktable, with higher printing accuracy.
2. PLC controls various functional actions, with simple and convenient operation.
3. Adopting an independent head, it can meet the color matching printing needs of work-pieces of different sizes.
4. The machine architecture is made of high-quality aluminum alloy, which is lightweight and sturdy.
5. The oil cup is sealed to store ink, reducing vocalization and making it more environmentally friendly.
6. Automatic balancing oil knife, scraping oil cleanly
7. Staying time all position can be adjusted to meet different printing requirements.
8. It is possible to stick ink twice to obtain more thickness printing ink
9. It can prevent ink from drying and solidifying when there is a slight pause without glue falling off the front and back blank lines.
10. It can print six colors, five colors, four colors, three colors, two colors, and one color, making it versatile.
11. Automatic cleaning of the glue head function to ensure printing quality and stability.
