Digital UV Printer

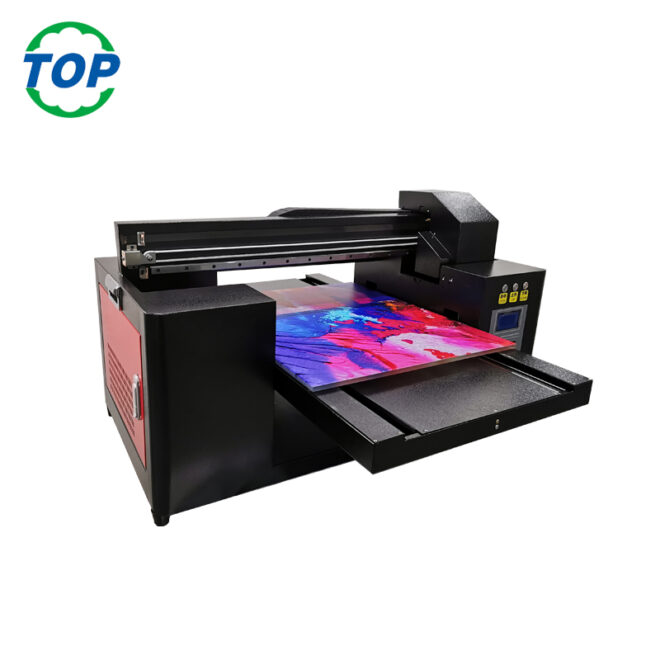

A3 UV Printing Machine

$2,500.00

New launched A3 / A2 Size UV Printer Highlights:

1: Smart printing size 30*60cm / 50*60cm, space save and low investment to start printing business

2: Adopt 2 pieces XP600 / TX800 Printheads cheap printheads maintenance cost

3: 2 Print heads can print CMYK+White+Varnish at one pass ink output

4: Honeycomb suction down platform and HIWIN Linear guide ensure high quality printing and durable printing machines
5: Dual led uv lamps with circulation cooling method more efficient and longer lifespan up to 20000 Hours
6: New trend for pet film UV dtf printing
Send Enquiry
Application range (Any flat and cylinder product)
Wedding gifts Small accessories Stationery
 USB stick  Personalize  speaker Business card holder
Pens Crystal gift Various cards
T-shirt Leather
Cup Cola tin
Specifications
Model No. A3+(3360)UV
Print Head Model EPSON TX800
Number of nozzles 1-2
Printing Area 330×500mm
Platform Area 330×600mm
Max Print Resolution 5760*1440 dpi (720 dpi, 1440 dpi, 2880 dpi, 5760 dpi optimized)
Media Thickness Flat product 0-20CM, Cylinder dia. 5-17cm
Ink supply Continuous ink supply system
Ink Color CMYK +W
Ink Charateristic UV Ink
Ink Box Continuously ink supply / Volume 250ml
Drying System UV_LED Curing
File Type TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc.
Power Requirement AC 220-240V,50/60Hz
Operating environment  Temperature 10-35C, Humidity 20-80RH
Operationg System Windows 10/8/7/Vista/XP
Power 200W
UV Cooling System Water cooling + Wind cooling
Operation Mode Intelligent key operated
Warranty 1 Year (Except for consumables)
Shipping & Packing
Printer size L86cm W70 cm H56 cm
Packaging Size L91 cm W81cm H68cm
Net Weight 60KG
Gross Weight 85KG
Packaging Wooden box
