Name: Auto loading 4station silk screen printer
SKU: 3173
Availability: InStock

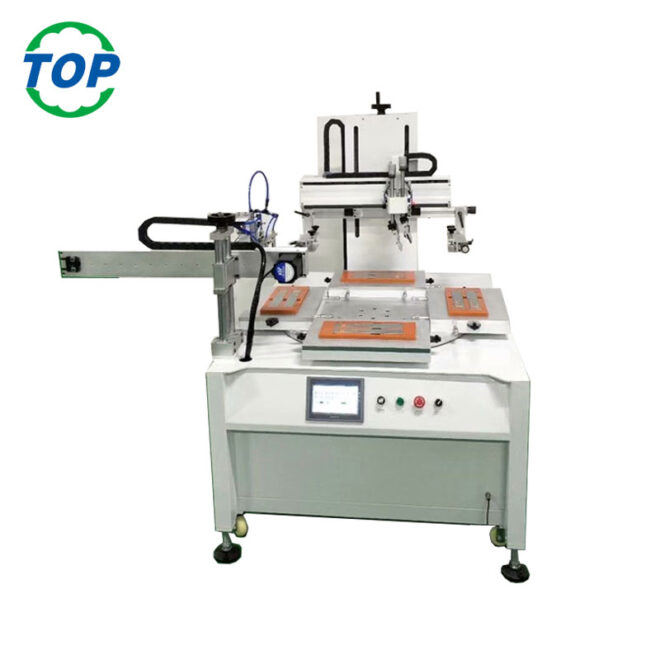

Auto loading 4station silk screen printer

$8,800.00

Precision rotary screen printing machine is mainly used for printing: mobile phone touch screen, light
guide OGS/TP/CG/LTD glass, slipper,PCB, LCD, liquid green oil, cold light film, film, keyboard, acrylic,
mobile phone panel, touch panel, Precision screen printing of light guides, diffusers, nameplates, ceramics,
stationery, and small film/sheet/plate products, such as flexible circuit (FPC), in-mold decoration (IMD),
membrane button (Membrane Switch) , biological test tablets……. and other products precision screen
printing.

Send Enquiry

Parameters: Features:
1、Printing color :1color by one color
2、Single cycle : Yes
3、Continuous cycle: Yes
4、count : Yes
5、Delay in each part: Yes（adjust）
6、Printing speed :1000Times/hour
7、Max frame : 400mmX650mm
8、Max printing size :200mmX250mm
9、Worktable size: 200mmX300mm
10、Rotate diameter :¢800mm
11、Station: 4pcs
12、Robert hand stroke :500mm
13、Maximum height of the work piece :60mm

14、Frame up and down stroke :120mm

15、Doctor blade left and right stroke : 350mm
16、Doctor blade up and down stroke : 40mm
17、Worktable vertical and horizontal adjustment: ±6mm
18、unloading method: Vacuum
19、Lift drive: Cylinder drive
20、Control system : Micro Computer/PLC

21、Control voltage: DC24V
22、Voltage:AC220V 50/60Hz
23、Connection load : 3.5KW
24、Working pressure Mpa : 0.4-0.6Mpa
25、Air consumption / cycle : 3.0L
26、Device size :1160mm（L）*1450mm(W)*1600mm(H)
27、Weight : 460 KG
28、Two years warranty
