1. The vertical lifting structure adopts an electric (frequency conversion drive) type for the screen lifting, and the left and right movements of the printing head are driven by a variable frequency motor.
2. Programmable PLC+ touch screen control circuit, independent drive source for printing and screen lifting
3. Pneumatically controlled printing tool holder lifting, photoelectric eye control stroke, independent adjustment.
4. It is equipped with manual/semi-automatic/automatic three modes, printing indirect time digital control.
5. According to the different requirements of the product for the thickness of the ink, 1-3 printing can be selected.
6. Independently designed head lifting device, squeegee/return knife, screen loading and unloading and screen cleaning.
7. Double safety devices ensure operator safety.
The machine adopts PLC+ touch screen control
The circuit uses Omron relay, Taiwan Shihlin AC contactor, Taiwan (F&C) photoelectric eye switch.
Printing uses Taiwan Yuxin gear reduction motor, variable frequency drive printing.
Printing scraper, ink repellent knife (Japan SMC) brand pneumatic components control.
The horizontal and horizontal scraping is made of Taiwan-made (HIWIN) precision linear guide.
The left and right conveyor belts use a Panasonic servo motor.
Parameter:

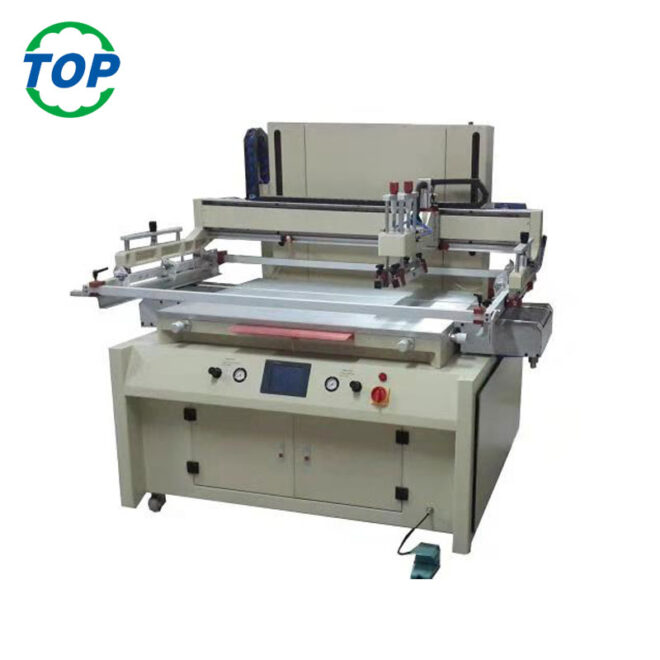

Model:TP-70100TS Pneumatic screen printer
Max printing thickness:20mm
Max printing thickness:20mm
Max printing area:700x1000mm
Max printing size:600x800mm
Max printing speed:800pcs/hr
Power:110v 3phase 60hz 500kw
Weight:560kg
Machine size:1100x1750x1800mm
