| Specifications | |

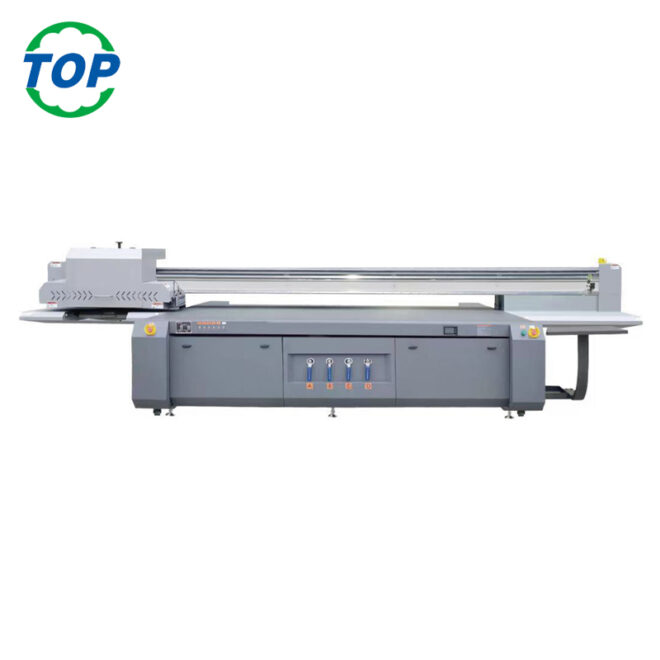

| Model | TP-F3220-R5 |
| Printhead | Ricoh Gen5 Gen6 |
| Resolution | 600DPI,900DPI,1200DPI |
| Colors | CMYK/LCLM/W/V(optional) |
| Thickness | 0-100mm |
| Curing System | UV LED/Mercury lamp(optional) |
| Vaccum Platform | Zoning control to meet different medias and sizes |
| Print size | Max:3200x2000mm |
| Ink | UV ink |
| Ink system | Dual Negative pressure ink supply system |
| Print Medias | Glass, Acrylic,Ceramic tile,Metal,PVC board,wooden, Decal,Wallpaper,Flex banner, and more |
| Operation system | Windows7/8/10/11 64bit RAM≥8G |
| Rip Software | Photoprint |
| Working environment | Temperature:18°C-26°C Humidity:40%-70% |
| Power supply | Max:7.5KW;AC220V(±10%>15A; 50hz-60hz |
| Support format | tiff jpeg eps pdf cdr ai cad |
| Machine(W*L*H) | 5100x2850x1350mm |
| GW | 1550kg |
