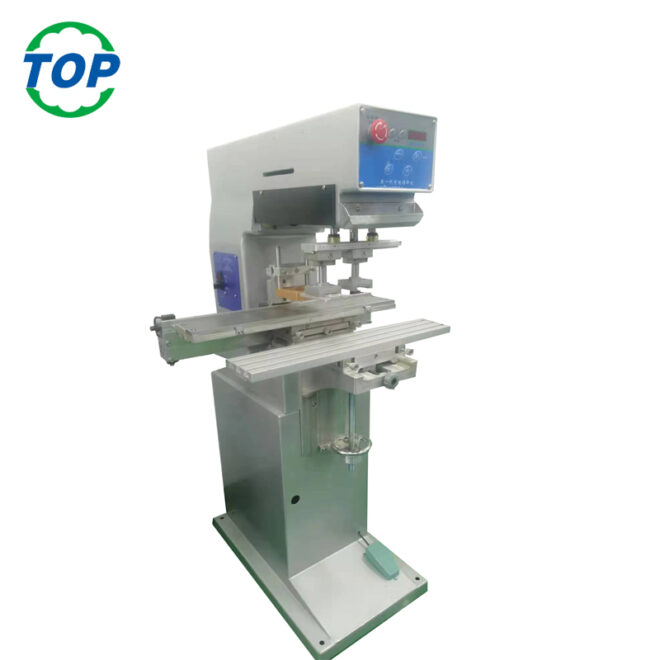

1.Rigid CNC Alloy Aluminum Casting Machine Frame.
2. Microprocessor control panel, simple and easy to use.
3. Machine with sealed ink cup device for environmentally friendly (low smell, small volatilization).
4. Printing stroke, printing speed adjusting available.
5. SMC component parts, HIWIN Guide rail, OMRON electric parts, FESTO Driven
6. Install safety device (foot switch, emergency stop switch, protection cover) to make sure the
operator’s safety, which is complied with CE certificate).
Parameters
| Model | TP-500DR |
| Plate size | 100*500mm |
| Ink cup | 100mm |
| Worktable size | 70*300 |
| Max Printing speed | 2000pcs/hr |
| Stroke | 150mm |
| Air consumption | 104liter/min 6bar |
| Work station | 1pc |
| Power | 110/220v 60/50hz 50w |
| Printing color | 1color |
| Pheumatic cylinder | SMC/FESTO/AIRTAC |
| Device size | 990x720x1600mm |
| Weight | 210kg |
